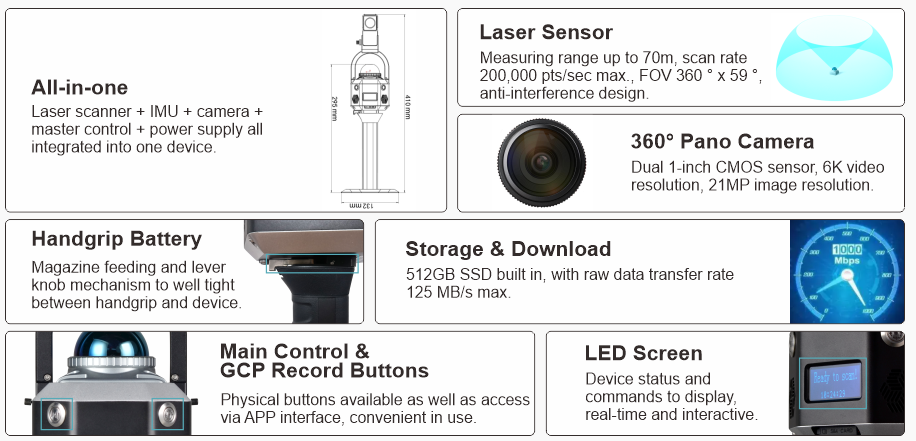

- A compact unit, 1.29kg only Live cloud and trajectory Max. measuring range 70m One-key to color point cloud
| RobotSLAM | Model | RobotSLAM Lite |
| Laser Wavelength | 905 nm | |
| Laser Safety Class | CLASS 1 (IEC 60825-1:2014), eye-safe | |
| FOV | horizontal 360°, vertical -7°~52° | |
| Measuring Range | 0.1~70 m (70 m @80% reflectivity; 40 m @10% reflectivity) | |
| Measurement Rate | 200,000 pts/sec | |
| Scanning Rate | 10 Hz | |
| IMU Module | built in, with push frequency 200 Hz (when enabled) | |
| Anti-interference | available | |
| Temperature | -20℃～65℃ (operating)，-40℃～70℃ (storage) | |
| IP Protection | IP 67 | |
| Dimension | 180x132x312 mm (w/o camera); 180x132x386 mm (with camera) | |
| Weight | 1.29kg | |
| Power Supply | handheld grip with inbuilt battery, cable-free connection | |
| Endurance | 2~2.5 hours | |
| Input Voltage | DC 9~27 V | |
| LED Screen | available | |
| Relative Accuracy | best up to 1 cm | |
| Realtime Point Cloud | available | |
| Realtime Trajectory | available | |
| Pano Camera | external, Pano360 II, 2-lens fisheye 360°, 21 MP in total | |
| Software | RobotSLAM Palm (smartphone APP) RobotSLAM Engine (PC |
